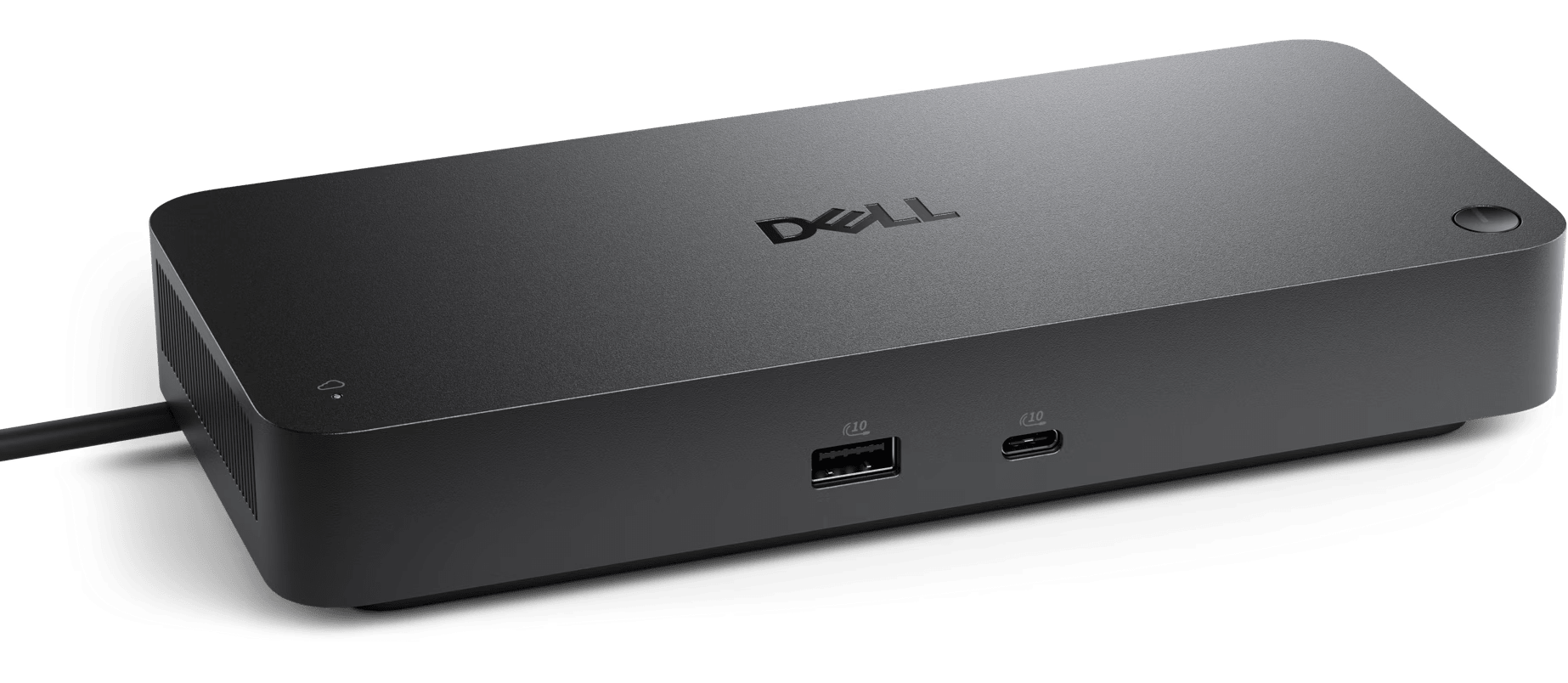

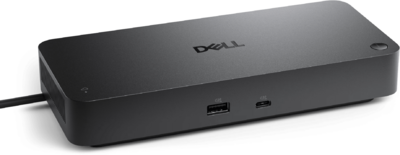

Dell Pro Smart Dock SD25 Dokkoló 130W AC Adapterrel (210-BRFM)

Dell Pro Smart Dock SD25 with 180W AC adapter -
USB Type-C csatlakozás
Portok: 4X USB 3.2 Gen2 (Type-A), 1x USB-C 3.2 Gen 2 Multi-function DisplayPort, 1x USB-C 3.2 Gen 2 (10 Gbps) Data only, 1X HDMI 2.1, 2X DisplayPort 1.4, 1X RJ45, 130W (Dell systems), 96W (non-Dell systems),

Compatibility: delltechnologies

Technical Information

Connectivity Technology: Wired

Number of Displays Supported: 4

Management Features

Host PC Management

• MAC address pass-through
• PXE Boot
• Dock Power Button Sync
• Wake-On-LAN
• WLAN to LAN switch
• Kernel Direct Memory Access (DMA) protection

Dock Management Features

• Remote firmware updates without a PC
• Host PC based firmware updates
• Firmware update on disconnect
• Port Disablement independent of PC

Video Resolution

DP1.4 with Display Stream Compression

• 4 x WQHD (3440 x 1440) @ 60Hz
• 3 x WQHD (3440 x 1440) @ 60Hz
• 2 x 5K (5120 x 2160) @ 60Hz
• 1 x 6K (6144 x 3456) @ 60Hz

DP1.4 without Display Stream Compression

Up to:

• 4 x HD (1280x720) @ 60Hz
• 3 x FHD (1920x1080) @ 60Hz
• 2 x QHD (2560x1440) @ 60Hz
• 1 x 4K (3840 x 2160) @ 60Hz

---

Network & Communication

Ethernet Technology: RJ45 Ethernet port, 2.5GbE

---



Video interfaces

• 2 x DP1.4
• 1 x HDMI 2.1
• 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

• 4 x USB-A 3.2 Gen 2 (10 Gbps)
• 1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)

• 4 x USB-A 3.2 Gen 2 (4.5W each)
• 1 x USB-C 3.2 Gen 2 (15W)
• 1 x USB-C Multi-function DisplayPort (7.5W)
• All deliver power with or without PC

USB Power Delivery

• 130W (Dell systems)
• 96W (non-Dell systems)

---

Software

Operating System Supported

• Windows 10
• Windows 11
• Ubuntu
• Red Hat Enterprise Linux
• ChromeOS

---

Power Description

Maximum Power Supply Wattage: 180W

---

Physical Characteristics

Height: 205mm

Width: 90mm

Depth: 35.25mm

Weight (Approximate): 562 g

---

Miscellaneous

Package Contents

• Docking Station
• Power Adapter and Power Cord
• Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)

Kensington Security Slot: Yes

---

Warranty

Limited Warranty - 3 Year
