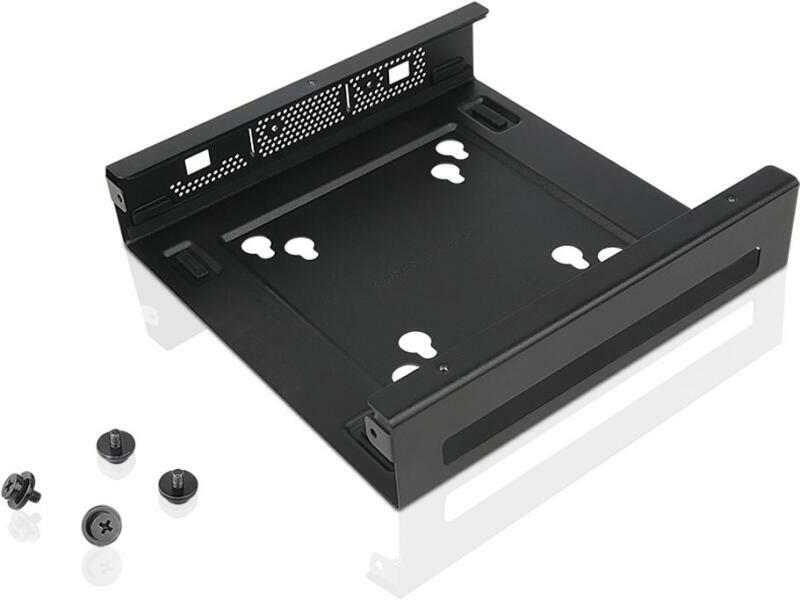

Lenovo ThinkCentre Tiny VESA Mount II (4XF0N03161)

ThinkCentre Tiny VESA Mount II

Overview

The ThinkCentre Tiny VESA Mount II (4XF0N03161) is a unique design specific to house the Tiny PC while featuring the universal VESA mount configuration. The VESA standard enables this mount to attach to anything that is VESA compatible for the utmost in mounting flexibility. This versatile mounting device can be used separately or combined with other options for secure mounting functionality.

The ThinkCentre Tiny VESA Mount II is a required component for the following ThinkCentre Tiny options:

• ThinkCentre Tiny Storage Unit (0B47375)
• ThinkCentre Tiny L-Bracket Mounting Kit (0B47373)
• ThinkCentre Tiny Under Desk Mount Bracket (0B47097)

The ThinkCentre Tiny VESA Mount II is also used with the following ThinkCentre Tiny options:

• ThinkCentre Tiny Clamp Bracket Mounting Kit II (4XF0N82412)

Technical Information

PHYSICAL SPECIFICATIONS UNPACKAGED:

• Approximate height: 185mm (7.28 in)
• Approximate width: 185 mm (7.28 in)
• Approximate length: 42 mm (1.65 in)
• Approximate weight: 325g

PHYSICAL SPECIFICATIONS PACKAGED:

• Approximate height: 251 mm (9.88 in)
• Approximate width: 235 mm (9.25 in)
• Approximate length: 78 mm (3.07 in)
• Approximate weight: 487g

Compatibility

The ThinkCentre Tiny VESA Mount II (4XF0N03161) is compatible with:

• ThinkCentre M-Series All-in-One: M800z
• ThinkCentre Tiny systems: M600, M700, M710, M715, M715q, M900, M910, M910x
• ThinkStation Tiny systems: P320

For the latest updates on the compatible systems, refer to one of the following:

• Lenovo Smart Find
• Accessories Compatibility Guide

Shipment Group

• Tiny VESA Mount II
• Setup Poster

Charges - FRU Parts

• 01EF666
