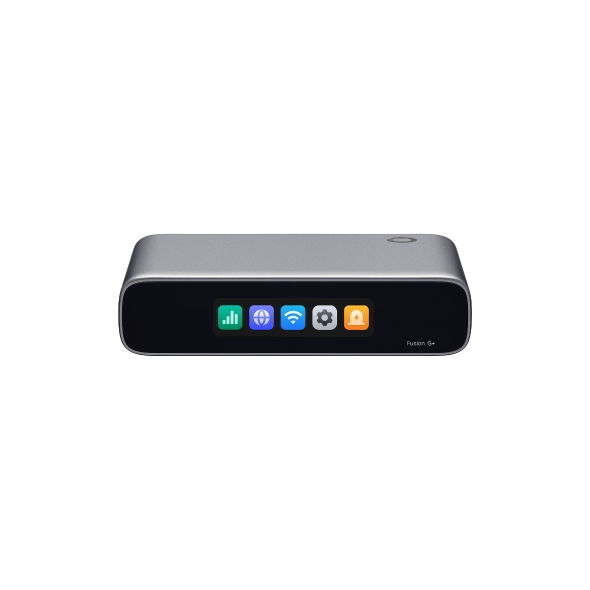

TP-LINK Gateway & Controller 1xWAN(2.5Gbps) + 4xWAN/LAN 1000Mbps (FUSION G+)

Fusion G+

Omada Fusion G+ Gateway

License‑Free Cloud Management for Easy and Secure Remote Access
Simplified Setup with App-Guided Onboarding via Bluetooth and One-Tap Bulk Device Adoption
Enterprise‑Grade Performance: Quad-Core CPU, 5× RJ45 Ports (1× 2.5G WAN, 4× Gigabit WAN/LAN), Up to 4‑WAN Load Balancing with Auto Failover, 2.1 Gbps-Class IDS/IPS Throughput
Quick Troubleshooting via Touchscreen, Reducing On-Site Visits
Secure Remote Network Access in One Click Away with Omada LightLink VPN
Advanced Software Capabilities: App‑Based ACL, Auto QoS, Full Mesh SD-WAN, Content Filtering & Ad Blocking, DPI
Flexible Mounting Options: Desktop, Wall-Mountable, Rack-Mountable

Overview
Built-In Omada Applications	Network Application
Managed Omada Devices	Recommended for up to 30 devices
Client Capacity	Recommended for up to 300 connected clients
Interface	• 1× 2.5G RJ45 WAN port • 4× Gigabit RJ45 LAN/WAN ports • Up to 4 simultaneous WAN ports
IPS Throughput	2,183 Mbps
Site-to-Site VPN Throughput	1,023 Mbps
Management	Cloud, local, and Omada App management
Mounting	• Desktop • Wall-mount (magnetic-mount plate sold separately) • Rack-mount (rackmount kit sold separately)
Dimensions	5.12 × 3.74 × 1.18 in (130 × 95 × 30 mm)

Built-in Omada Controller§
Cloud Access	√
Local Management	√
Omada App	√
Multi-Site Management	Via the Omada Cloud Management Platform
Restore & Backup	√
Automatic Device Discovery	√
Network Topology	√
Dashboard	√
Device List / Client List	√
Logs / Alerts / Events	√
Batch Firmware Upgrade	√
Health Monitoring	√
Internet Activity	√
Captive Portal	√
RADIUS / LDAP Authentication	√
802.1X Authentication	√
OUI-Based VLAN	√
Diagnostics Tools	Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring
SNMP	v1/v2c/v3

SECURITY
IDS/IPS	√
DPI	√
Application-Based ACL	√
Content Filtering	√
Ad Blocker	√
Safe Search	√
DNS Security	√
Firewall	√
Attack Defense	√
ARP Inspection	√

VPN & SD-WAN
Omada LightLink VPN	√
Site-to-Site VPN	WireGuard VPN / IPsec VPN
VPN Server	WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN
VPN Client	WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN
SD-WAN	Full Mesh Mode
VPN Throughput	• Omada LightLink VPN: 527 Mbps • IPsec VPN: 1,023 Mbps • WireGuard VPN: 605 Mbps • OpenVPN: 223 Mbps • L2TP VPN: 892 Mbps • PPTP VPN: 193 Mbps • SSL VPN: 250 Mbps

Networking
WAN Connection	Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite
Multi-WAN Failover & Load Balancing	√
DHCP Server	√
VLAN Segmentation	√
Bandwidth Control	√
QoS	√
Static Routing	√
Policy Routing	√
NAT	Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT
Dynamic DNS	TP-Link DDNS, 3rd-party DDNS, custom DDNS
IPv6	Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode
Bonjour / mDNS	√
IGMP v2/v3 Proxy	√

HARDWARE
Touchscreen	2.51-inch color LCM touchscreen
Button	Reset button
Memory	2 GB DDR4
Power Supply	USB-C power adapter, 100–240 V AC, 50/60 Hz input, 5 V DC / 3 A output
Max Power Consumption	6.18 W, with power adapter
Enclosure	Polycarbonate
LED	Ethernet
Fan	Fanless
Net Weight	0.77 lb (351 g)
Surge Protection	4 kV surge protection
ESD Protection	±8 kV (Air), ±4 kV (Contact)
Onboarding	Bluetooth or Ethernet
Certifications	CE, FCC, RoHS
Environment	• Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C) • Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C) • Operating Humidity: 10% to 90% RH, non-condensing • Storage Humidity: 5% to 90% RH, non-condensing
